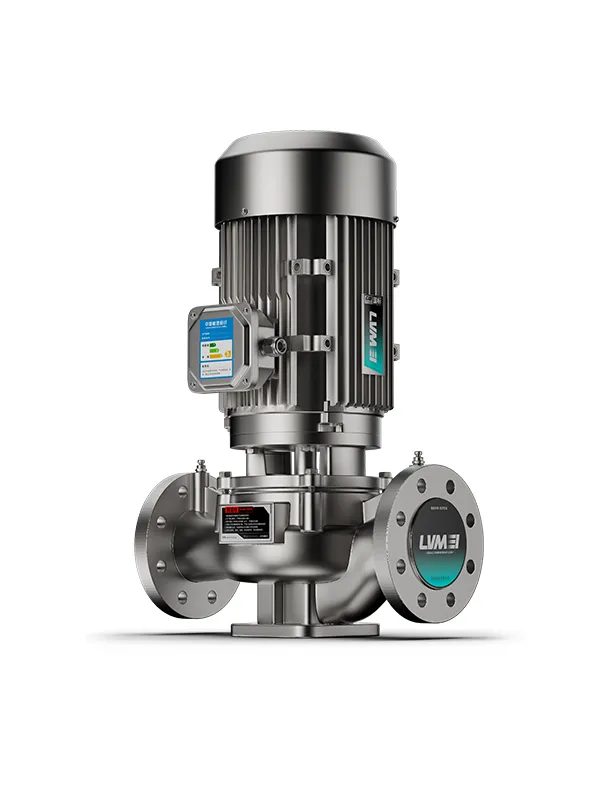

ISG Vertical in-line pump

ISG Vertical in-line pump adopts the entire steel shaft material, and undergoes processing processes such as balancing, chrome plating and quenching

Keyword:

Categories:

In-line pump

E-mail: service@lvmeipump.com

Phone/WhatsApp: +8613958610565

Get A Quote

Back

Description

You May Like

Product Overview
The vertical/horizontal pipeline pump adopts the entire steel shaft material and undergoes processing processes such as balancing, chrome plating, and quenching; High precision humanistic bearings;Single sided heat resistant 120℃ hot water type canopy mechanica seal, specially made thickened fan blades, rear fan hood, and junction box.

Applications
● Pipeline circulation boosting for factories and central air conditioning systems

● Cold and hot water circulation in hotels and bathrooms
● Boosting water supply for residential areas, high-rise buildings and urban buildings

● Industrial and urban drainage

Operating environment

● Max. working pressure: 16 bar (pump suction inlet pressure plus head shall not over 16 bar)

● Applicable medium: non-corrosive liquids, solid insoluble volume should not over 0.1% of the unit volume, and the particle size should less than 0.2 mm

● Max. ambient temperature: +40'C, max.relative humidity: 95%

S/N	Model	Rated Flow (m³/h)	Rated Head (m)	Rated Power (kW)	Voltage (v)	Piping Diameter
1	25-125	4	20	0.75	220	25(mm)/1(in)
2	32-125	5	20			32(mm)/1.2(in)
3	40-125A	5.6	16			40(mm)/1.5(in)
4	50-100A	11	10			50(mm)/2(in)
5	40-125	6.3	20	1.1		40(mm)/1.5(in)
6	50-100	22.3	10	1.1		50(mm)/2(in)
7	40-160A	5.9	28	1.5		40(mm)/1.5(in)
8	50-125	12.5	20	1.5		50(mm)/2(in)
9	25-125	11		0.75	380	25(mm)/1(in)
10	32-125	5				32(mm)/1.2(in)
11	32-100(I)	5.3	12.5			32(mm)/1.2(in)
12	40-125A	5.6	16			40(mm)/1.5(in)
13	40-100(I)A	11	10			40(mm)/1.5(in)
14	50-100A	11	10			50(mm)/2(in)
15	25-160A	3.7	28	1.1		25(mm)/1(in)
16	32-160A	4	25			32(mm)/1.2(in)
17	40-125	6.3	20			40(mm)/1.5(in)
18	40-160B	5.5	24
19	40-100(I)	12.5	12.5
20	40-125(I)A	11	16
21	50-125A	11	16			50(mm)/2(in)
22	50-100	12.5	12.5
23	50-100(I)A	22.3	10
24	65-100A	22.3	10			65(mm)/2.5(in)
25	32-160	6.3	32	1.5		32(mm)/1.2(in)
26	40-160A	5.9	28			40(mm)/1.5(in)
27	40-125(I)	12.5	20
28	40-160(I)B	10.4	22
29	50-125	12.5	20			50(mm)/2(in)
30	50-160B	10.4	22
31	50-100(I)	25	12.5
32	65-100	25	12.5			65(mm)/2.5(in)
33	32-160(I)	6.3	32	2.2		32(mm)/1.2(in)
34	40-160	6.3	32			40(mm)/1.5(in)
35	40-200B	5.3	36
36	40-160(I)	11.7	28
37	A50-160A	11.7	28			50(mm)/2(in)
38	50-125(I)A	22.3	16			50(mm)/2(in)
39	65-125A	22.3	16			65(mm)/2.5(in)
40	65-100(I)A	44.7	10			65(mm)/2.5(in)
41	80-100A	44.7	10			80(mm)/3(in)
42	32-200	4.5	50	3		32(mm)/1.2(in)
43	40-200A	5.9	44			40(mm)/1.5(in)
44	40 160(I)	2.5	32
45	40-160(I)B	10.6	36
46	50-160	12.5	32			50(mm)/2(in)
47	50-200B	10.6	36
48	50-125(I)	25	20
49	50-160(I)B	23.4	28
50	65-160B	21.6	24			65(mm)/2.5(in)
51	65-125	25	20
52	65-100(I)	50	12.5
53	80-100	50	12.5			80(mm)/3(in)
54	32-200(I)	6.3	50	4		32(mm)/1.2(in)
55	40-200	6.3	50			40(mm)/1.5(in)
56	40-200(I)A	11.7	44			40(mm)/1.5(in)
57	50-200A	11.7	44			50(mm)/2(in)
58	50-160(I)	25	32			50(mm)/2(in)
59	50-160(I)A	23.4	28			50(mm)/2(in)
60	65-160	25	32			65(mm)/2.5(in)
61	65-160A	23.4	28
62	65-125(I)A	45	16
63	80-125A	45	16			80(mm)/3(in)
64	80-100(I)A	89	10			80(mm)/3(in)
65	100-100A	89	10	5.5		100(mm)/4(in)
66	40-250A	5.9	70			40(mm)/1.5(in)
67	40-250(I)C	10	52
68	40-200(I)	12.5	50
69	50-200	12.5	50			50(mm)/2(in)
70	50-200(I)B	21.8	38
71	50-250C	10	52
72	65-200B	21.8	38			65(mm)/2.5(in)
73	65-160(I)B	43.3	24
74	65-125(1l)	50	20
75	80-160B	43.3	24		80(mm)/3(in)
76	80-125	50	20
77	80-100(I)	100	12.5
78	100-100	100	12.5		100(mm)/4(in)
79	40-250	6.3	80	7.5	40(mm)/1.5(in)
80	40-250(I)A	11.6	70
81	40-250(I)B	10.8	60
82	50-250A	11.6	70		50(mm)/2(in)
83	50-250B	10.8	60
84	50-200(I)	25	50
85	50-200(I)A	23.5	44
86	65-200	25	50		65(mm)/2.5(in)
87	65-200A	23.5	44
88	65-200(I)B	43.5	38
89	65-160(I)	50	32
90	65-160(I)A	46.7	28
91	80-160	50	32		80(mm)/3(in)
92	80-160A	46.7	28
93	80-200B	43.5	38
94	80-125(I)A	89	16
95	100 -125A	89	16		100(mm)/4(in)
96	00-160B	86.6	24		100(mm)/4(in)
97	25-100A	143	10		125(mm)/5(in)
98	40-250(I)	12.5	80	11	40(mm)/1.5(in)
99	50-250	12.5	80		50(mm)/2(in)
100	50-250(I)A	23.4	70
101	50-250(I)B	21.6	60
102	65-250A	23.4	70		65(mm)/2.5(in)
103	65-250B	21.6	60
104	65-200(I)A	47	44
105	80-200/	47	44		80(mm)/3(in)
106	80-160(I)A	93.5	28
107	80-160(I)B	86.6	24
108	80-125(I)	100	20
109	100-160A	93.5	28		100(mm)/4(in)
110	100-100(I)	160	12.5		100(mm)/4(in)
111	100-125	100	20
112	100-125(I)A	140	17
113	125-125A	143	16		125(mm)/5(in)
114	125-100	160	12.5		125(mm)/5(in)
115	150-125A	150	16		150(mm)/6(in)
